Детали продукта
Место происхождения: Гуандун, Китай
Фирменное наименование: Miracle Bean
Сертификация: CE ROHS
Номер модели: XH-800W-24В
Условия оплаты & доставки
Количество мин заказа: 50 шт.
Цена: negotiate
Упаковывая детали: картон или деревянная
Время доставки: 5-15 дней
Условия оплаты: Т/Т, Вестерн Юнион
Поставка способности: 50000 шт в месяц
1OEM: |
доступны для клиентов дизайн упаковки |
2Тип: |
Постоянн сила режима напряжения тока |
3Категория: |
IP67 Водонепроницаемый светодиодный источник питания постоянного тока 12 В |
4Материал раковины: |
Алюминий |
5Приложение: |
Дисплей СИД, жилой |
6Максимальный ток: |
33А постоянного тока |
7Выходное напряжение: |
24 В. |
8IP -ставка: |
IP67 |
9Входное напряжение: |
180–264 В переменного тока |
10СЕРВИС: |
OEM & ODM |
OEM: |
доступны для клиентов дизайн упаковки |
Тип: |
Постоянн сила режима напряжения тока |
Категория: |
IP67 Водонепроницаемый светодиодный источник питания постоянного тока 12 В |
Материал раковины: |
Алюминий |
Приложение: |
Дисплей СИД, жилой |
Максимальный ток: |
33А постоянного тока |
Выходное напряжение: |
24 В. |
IP -ставка: |
IP67 |
Входное напряжение: |
180–264 В переменного тока |
СЕРВИС: |
OEM & ODM |

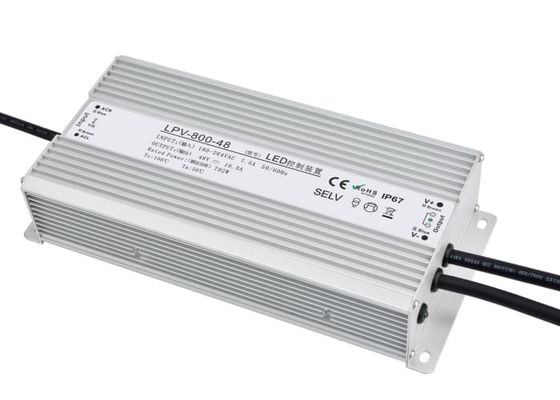

Wide Voltage IP67 Waterproof Switching Power Supply Constant Voltage Compact Size 800W 24V 36V 48V LED Driver
Product Description
| Model |
XH-FY800W-240-1 |
|
| DC output voltage | 24V | |
| Rated output current | 32A | |
| Output current range | 0~32A | |
| Ripple and noise | 180mVp-p | |
| DC output power | 800W | |
| Efficiency | 93.5% | |
| Input voltage |
180-264VAC |
|
| Working temperature and humidity | -20~+60 centigrades 20-90% RH non-condensing(waterproof) | |
| Store temperature and humidity | -40~+85centigrades 10-95% RH | |
| Weight | 1.64kg | |
| Input frequency | 50-60Hz | |
Product Advantages of Power Supplies
1. Stable Output: Delivers consistent voltage and current, effectively protecting connected devices from damage caused by power fluctuations.
2. High Efficiency: Boasts high energy conversion rate (often 85%+), reducing energy waste and lowering overall operating costs.
3. Wide Compatibility: Works with various input voltages (e.g., 100-240V AC) and supports multiple device types, meeting diverse usage needs.
4. Reliable Protection: Equipped with over-voltage, over-current, short-circuit, and over-temperature protection, enhancing safety and durability.
5. Compact & Portable: Small in size and light in weight, saving installation space and facilitating easy movement or carrying.
Our Advantages
Our Services
FAQ
2. Q: How long is the warranty period?
A: 2 Years
3. Q: How long is the delivery time?
A: For sample orders, we can send out the products as soon as we get the payment; For big orders, usually the delivery time is within 7 working days;OEM and ODM orders, within 15 working days.
Product Show
![]()
![]()
![]()
